250V, 6x30mm, Fast Acting Ceramic Tube Fuses
hv650 series_250vac.pdf
Description
Fast Acting, high breaking capacity under 250V
6x30mm physical size
Special Engineering Material tube, Silver plated copper cap construction
Designed to UL 248-1
Lead Free and Halogen free material
| Electrical Characteristics |
| Rated Current | 1.0In | 2.0In |
| 20A - 50A | 4 hour min. | 120 sec max. |
Specifications
| Specification |
| Part No. | Rated Voltage | Rated Current | Breaking Capacity (A) | Typical Cold. Resistance (mOhms) | Typical (mV) | Typical Pre-Arcing I2t (A2Sec) |
| HV650.20 | 250Vac 150Vdc | 20A | 1000A @250Vac
1000A @150Vdc | 4.5 | 140 | 1200 |
| HV650.25 | 25A | 3 | 130 | 2100 |
| HV650.30 | 30A | 2.8 | 120 | 3000 |
| HV650.40 | 40A | 1.8 | 115 | 12500 |
| HV650.50 | 50A | 1.6 | 110 | 14400 |
* DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃
* Typical Pre-arcing I2t are measured at 10In Current

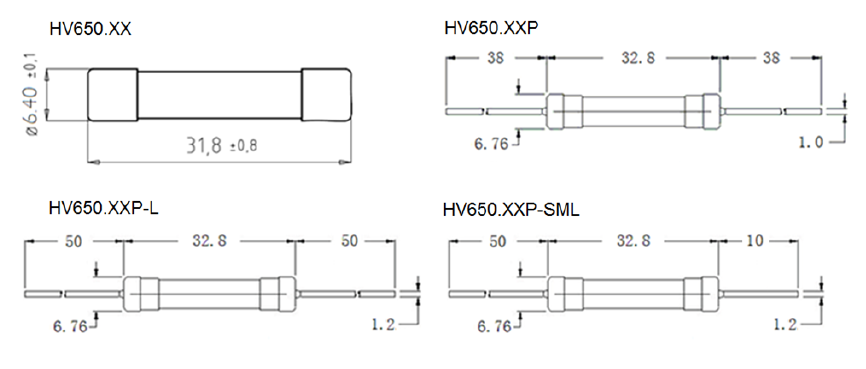

Dimension
