Automotive Super Mini Blade Type Car Fuse Automotive Blade Fuses 2A
MINI_58V_Datasheet.pdf
Specifications
Interrupting Rating: 1000A @ 58 VDC
Voltage Rating: 58 VDC
Component Level Temperature Range: -40˚C to +125˚C
System Level Temperature Range: -40˚C to +105˚C
Terminals: Ag plated zinc alloy
Housing Materials: PA66
Complies with: SAE J2077, SAE 2576 ISO 8820 UL 248 Special Purpose Fuses
**105°C is a typical system level temperature requirement.
Ratings
| Part Number | Current Rating
(A) | Typ. Voltage Drop
(mV) | Cold Resistance
(mΩ) | I2t
(A²s) |
| 0997002_ | 2 | 171 | 55.60 | 2.8 |
| 0997003_ | 3 | 153 | 33.75 | 9.4 |
| 0997004_ | 4 | 121 | 23.48 | 17 |
| 0997005_ | 5 | 129 | 17.75 | 25 |
| 099707.5_ | 7.5 | 135 | 10.85 | 68 |
| 0997010_ | 10 | 108 | 7.42 | 93 |
| 0997015_ | 15 | 98 | 4.58 | 270 |
| 0997020_ | 20 | 96 | 3.21 | 380 |
| 0997025_ | 25 | 86 | 2.36 | 625 |
| 0997030_ | 30 | 87 | 1.85 | 1130 |
Time-Current Characteristics
| % of Rating | Opening Time Min / Max (s) |
| 110 | 360,000 s / – |
| 135 | 0.75 s / 600 s |
| 200 | 0.15 s / 5 s |
| 350 | 0.080 s / 0.500 s |
| 600 | 0.030 s / 0.100 s |

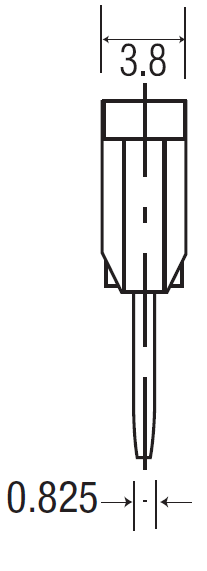

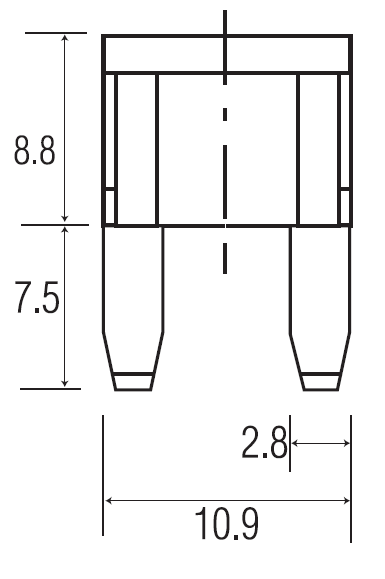

Dimensions
