130V DC PTC Resettable Fuses Plug In Self Recovery Fuse Component Protection
BJK130_datasheet.pdf
Features
Radial Leaded Devices
Cured, flame retardant epoxy polymer insulating material meets UL94V-0 requirements
RoHS compliant and lead-free
environmented specificatiens
Applications
Almost anywhere there is a low voltage power supply, up to AC130V and a load to be protested, including:
Security and fire alarm systems
Lamp, rectifier, transformer, motor
| P/N | Ihold | Itrip | Vmax (Vac) | Imax (A) | Maximum Time To Trip(12V) | Resistance |
| Current (A) | Time (sec.) | Rmin (Ω) | Rmax (Ω) | R1max (Ω) |
| BJK130-006 | 0.06A | 0.12A | 130 | 5 | 0.3 | 10 | 5 | 18 | 36 |
| BJK130-010 | 0.10A | 0.20A | 130 | 10 | 0.5 | 6 | 2.5 | 9 | 20 |
| BJK130-015 | 0.15A | 0.30A | 130 | 10 | 0.45 | 12 | 2.5 | 7.5 | 18 |
| BJK130-017 | 0.17A | 0.34A | 130 | 10 | 0.51 | 12 | 1.5 | 7 | 16 |
| BJK130-020 | 0.20A | 0.40A | 130 | 10 | 0.6 | 12 | 1.9 | 4 | 12 |
| BJK130-025 | 0.25A | 0.50A | 130 | 10 | 0.75 | 12 | 1.45 | 3.5 | 6 |
| BJK130-030 | 0.30A | 0.60A | 130 | 10 | 0.9 | 15 | 1 | 3 | 5 |
| BJK130-035 | 0.35A | 0.70A | 130 | 10 | 1.05 | 15 | 1 | 2.8 | 5 |
| BJK130-040 | 0.40A | 0.80A | 130 | 10 | 1.2 | 15 | 0.75 | 2 | 4 |
| BJK130-045 | 0.45A | 0.90A | 130 | 10 | 1.35 | 15 | 0.6 | 1.9 | 3.6 |
| BJK130-050 | 0.50A | 1.00A | 130 | 10 | 1.5 | 15 | 0.5 | 1.6 | 3.5 |
| BJK130-065 | 0.65A | 1.30A | 130 | 10 | 1.95 | 18 | 0.45 | 1 | 2 |
| BJK130-075 | 0.75A | 1.50A | 130 | 10 | 2.25 | 18 | 0.4 | 0.9 | 2 |
| BJK130-090 | 0.90A | 1.80A | 130 | 10 | 2.7 | 18 | 0.3 | 0.7 | 1.5 |
| BJK130-110 | 1.10A | 2.20A | 130 | 10 | 3.3 | 18 | 0.2 | 0.65 | 0.9 |
| BJK130-135 | 1.35A | 2.70A | 130 | 10 | 4.05 | 18 | 0.15 | 0.6 | 0.9 |
| BJK130-160 | 1.60A | 3.20A | 130 | 10 | 4.8 | 18 | 0.1 | 0.5 | 1 |
| BJK130-185 | 1.85A | 3.70A | 130 | 10 | 5.55 | 18 | 0.1 | 0.4 | 0.8 |
| BJK130-200 | 2.00A | 4.00A | 130 | 10 | 6 | 25 | 0.1 | 0.3 | 0.5 |
| BJK130-250 | 2.50A | 5.00A | 130 | 10 | 7.5 | 25 | 0.05 | 0.25 | 0.45 |
| BJK130-300 | 3.00A | 6.00A | 130 | 10 | 9 | 25 | 0.05 | 0.25 | 0.4 |
| BJK130-375 | 3.75A | 7.50A | 130 | 10 | 11.25 | 25 | 0.05 | 0.25 | 0.4 |
Ihold Hold current:Maximum current device will not trip in 25℃ still air.
Itrip Trip current:Minimum current at which the device will always trip in 25℃ still air.
Vmax :Maximum interrupt voltage device can withstand without damage at rated current.
Imax : Maximum fault current device can withstand without damage at rated voltage.
Pd : Typical power dissipated from device when in the tripped state in 25℃ still air environment at rated voltage.
Rmin/Rmax: Minimum/Maximum device resistance prior to tripping at 25℃.
R1max:Maximum device resistance one hour after it is tripped at 25℃.
*CAUTION:Operation beyond the specified rating may result in damage and possible arcing and flame.

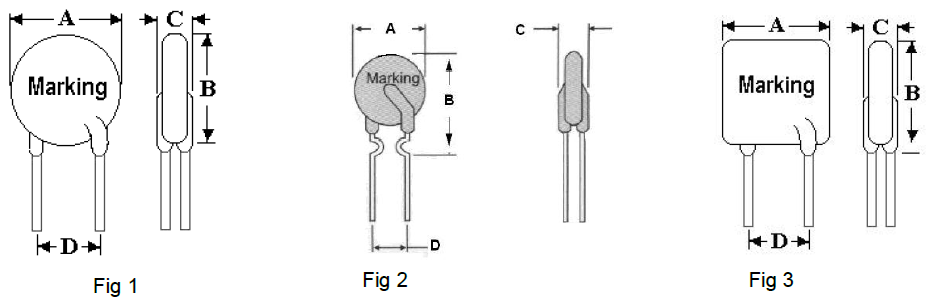

Dimensions and Packing Information
| Model | Fig. | Quantity | A(max) | B(max) | C(max) | D(type) |
| BJK130-006 | 1 | 1000 | 7 | 11 | 3.8 | 5.1 |
| BJK130-010 | 2 | 1000 | 7.4 | 12.7 | 3.8 | 5.1 |
| BJK130-015 | 2 | 1000 | 7.4 | 13 | 3.8 | 5.1 |
| BJK130-017 | 2 | 1000 | 7.4 | 13.5 | 3.8 | 5.1 |
| BJK130-020 | 2 | 1000 | 7.6 | 13.5 | 3.8 | 5.1 |
| BJK130-025 | 2 | 1000 | 8 | 14 | 3.8 | 5.1 |
| BJK130-030 | 2 | 1000 | 8 | 14 | 3.8 | 5.1 |
| BJK130-035 | 2 | 1000 | 8 | 14 | 3.8 | 5.1 |
| BJK130-040 | 2 | 1000 | 9.4 | 14 | 3.8 | 5.1 |
| BJK130-045 | 2 | 1000 | 10.2 | 15.2 | 3.8 | 5.1 |
| BJK130-050 | 2 | 1000 | 10.2 | 15.2 | 3.8 | 5.1 |
| BJK130-065 | 2 | 1000 | 12.8 | 18 | 3.8 | 5.1 |
| BJK130-075 | 2 | 500 | 12.8 | 18 | 3.8 | 5.1 |
| BJK130-090 | 1 | 500 | 14.5 | 19.6 | 3.8 | 5.1 |
| BJK130-110 | 1 | 500 | 16.3 | 21.3 | 3.8 | 5.1 |
| BJK130-135 | 1 | 500 | 17 | 22 | 3.8 | 5.1 |
| BJK130-160 | 1 | 500 | 20 | 25 | 3.8 | 5.1 |
| BJK130-185 | 1 | 500 | 22 | 23 | 3.8 | 5.1 |
| BJK130-200 | 1 | 500 | 22 | 27 | 3.8 | 10.2 |
| BJK130-250 | 1 | 500 | 27 | 32 | 3.8 | 10.2 |
| BJK130-300 | 1 | 500 | 26 | 31 | 3.8 | 10.2 |
| BJK130-375 | 3 | 500 | 27 | 32 | 3.8 | 10.2 |
FAQ
Q: What can i do if i got a broken product form A-TEAM FUSE INC?
A: First of all please tell us as soon as possible after we will send a new one to you immediately but please send the broken product to us .you don't have to worry about the carriage charge we will pay for that.
Q;Are we a importer or manufacturer?
A;We are a manufacturer
Q:Why you have to choose us
A:High quality assurance. The most competitive price and fast shipping
Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
