ABS series rectifier bridge ABS10 4-pin rectifier diode Transient Voltage Suppressor Diode
Features
The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
Idea for printed circuit board
Glass passivated Junction chip
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed 250 C/10 seconds at terminals

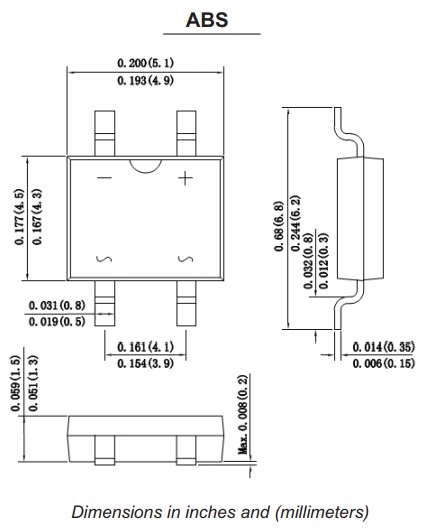

Mechanical Data
Case: Molded plastic body
Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Polarity symbol marking on body
Mounting Position: Any
Weight : 0.004 ounce, 0.12 grams
Maximum Ratings & Thermal Characteristics
Rating at 25 C ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz. For Capacitive load derate current by 20%.
| |
SYMBOLS |
ABS2 |
ABS4 |
ABS6 |
ABS8 |
ABS10 |
unit |
| Maximum repetitive peak reverse voltage |
VRRM |
100 |
200 |
400 |
600 |
800 |
V |
| Maximum RMS bridge input voltage |
VRMS |
70 |
140 |
280 |
420 |
560 |
V |
| Maximum DC blocking voltage |
VDC |
100 |
200 |
400 |
600 |
800 |
V |
|
Maximum average forward rectified current at TL=30 C
On glass-epoxy P.C.B (Note 1)
On aluminum substrate (Note 2)
|
I(AV) |
0.8 |
A |
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) |
IFSM |
30 |
A |
| Maximum instantaneous forward voltage at 0.4A |
VF |
0.95 |
V |
|
Maximum DC reverse current T A =25 C
at rated DC blocking voltage TA=125 C
|
IR |
5.0
500
|
uA |
| Typical junction capacitance (Note 3) |
CJ |
15.0 |
pF |
| Typical thermal resistance |
RqJA |
75.0 |
℃/W |
| Operating junction and storage temperature range |
TJ,TSTG |
-55 to + 150 |
℃ |
Note::1.Mounted on glass epoxy PC board with 1.3*1.3mm solder pad
2.Mounted on aluninum substrate PC board with 1.3*1.3mm solder pad
3.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
