Transient Voltage Suppressor Diode SOD-123FL Rectifier Diode A7 2-pin SMD Diode
Features
The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
Ideal for printed circuit board
Glass passivated Junction chip
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed 250 C/10 seconds at terminals
Mechanical Data

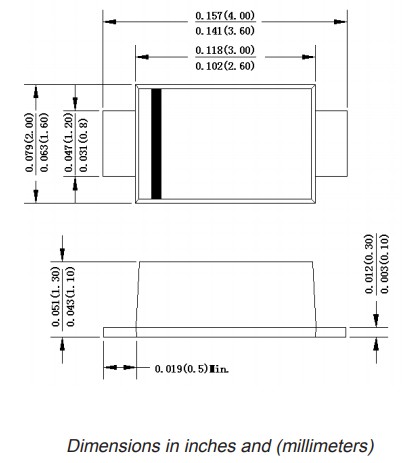

Case: JEDEC SOD-123FL molded plastic body
Terminals: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Polarity symbol marking on body
Mounting Position: Any
Weight : 0.0007 ounce, 0.02grams
Maximum Ratings And Electrical Characteristics
Rating at 25 C ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz. For Capacitive load derate current by 20%.
| |
MARKING |
A1 |
A2 |
A3 |
A4 |
A5 |
A6 |
A7 |
unit |
| Maximum repetitive peak reverse voltage |
VRRM |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
| Maximum RMS voltage |
VRMS |
35 |
70 |
140 |
280 |
420 |
560 |
700 |
V |
| Maximum DC blocking voltage |
VDC |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
|
Maximum average forward rectified current at TL=65 C
|
I(AV) |
1.0 |
A |
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) |
IFSM |
30.0 |
A |
|
Maximum instantaneous forward voltage at 1A
|
VF |
1.1
|
V |
|
Maximum DC reverse current T A =25 C at rated DC blocking voltage TA=125 C
|
IR |
5.0
|
uA |
| 500 |
| Typical junction capacitance (Note 1) |
CJ |
12 |
pF |
| Typical thermal resistance (NOTE 2) |
RθJA |
80 |
℃/W |
| Operating junction and storage temperature range |
TJ,TSTG |
-50 to +155 |
℃ |
Note: 1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2.Mounted on copper PC board with 5.0*5.0mm solder pad
