20A/30A/40A/50A Manual Reset, The Plastic Type Bolt Wings Of The Wing Overcurrent Protection
JULUN electronics is a provider of electronic components, design and development services for electronic manufacturing enterprises. The supply chain is integrated, optimized and efficient. Service products: protection components, fuse and fuse holder series, series resistance, capacitor series, and other services, covering a wide range of industrial electronics, communications equipment, consumer electronics, automotive electronics, mobile phone applications.
The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.

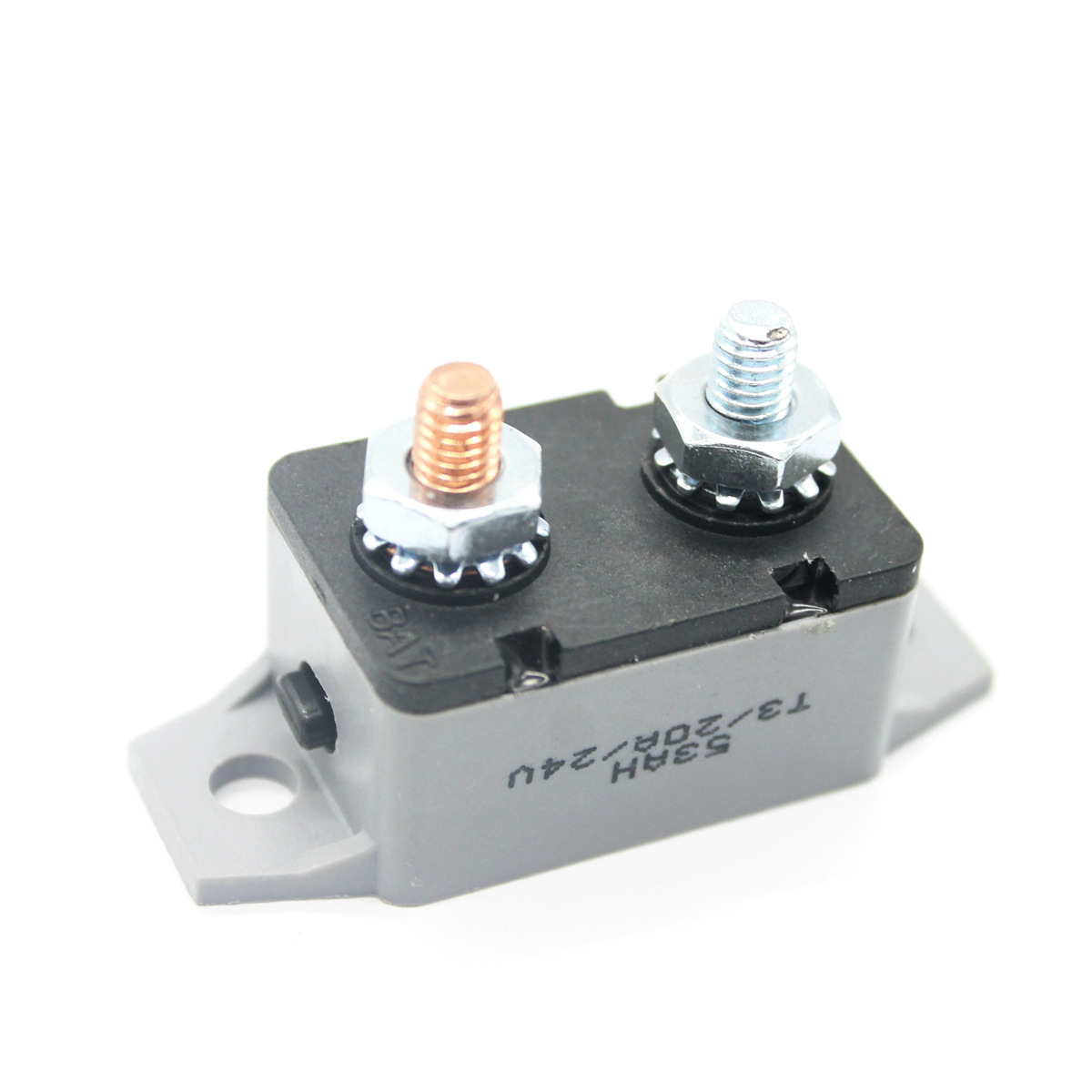

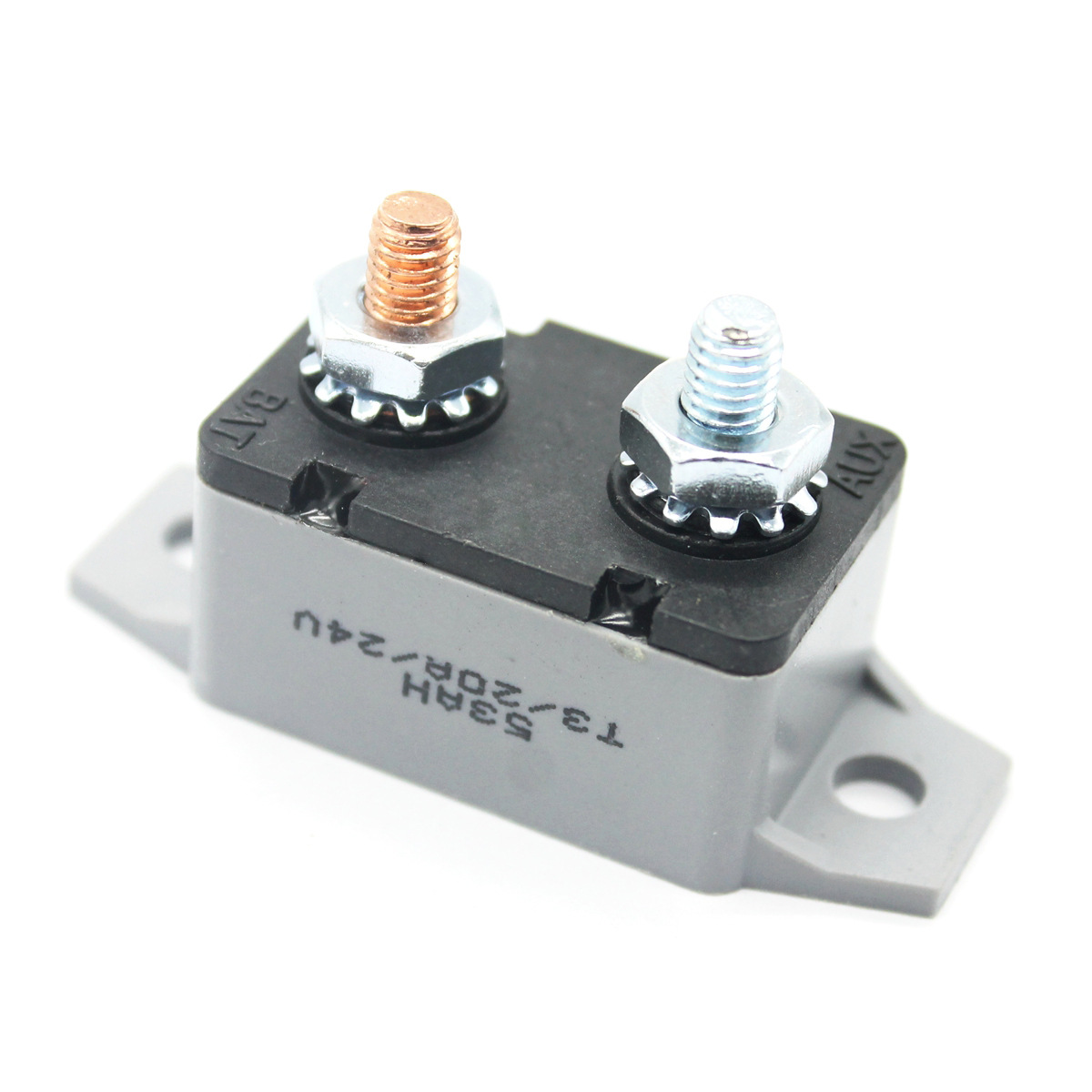

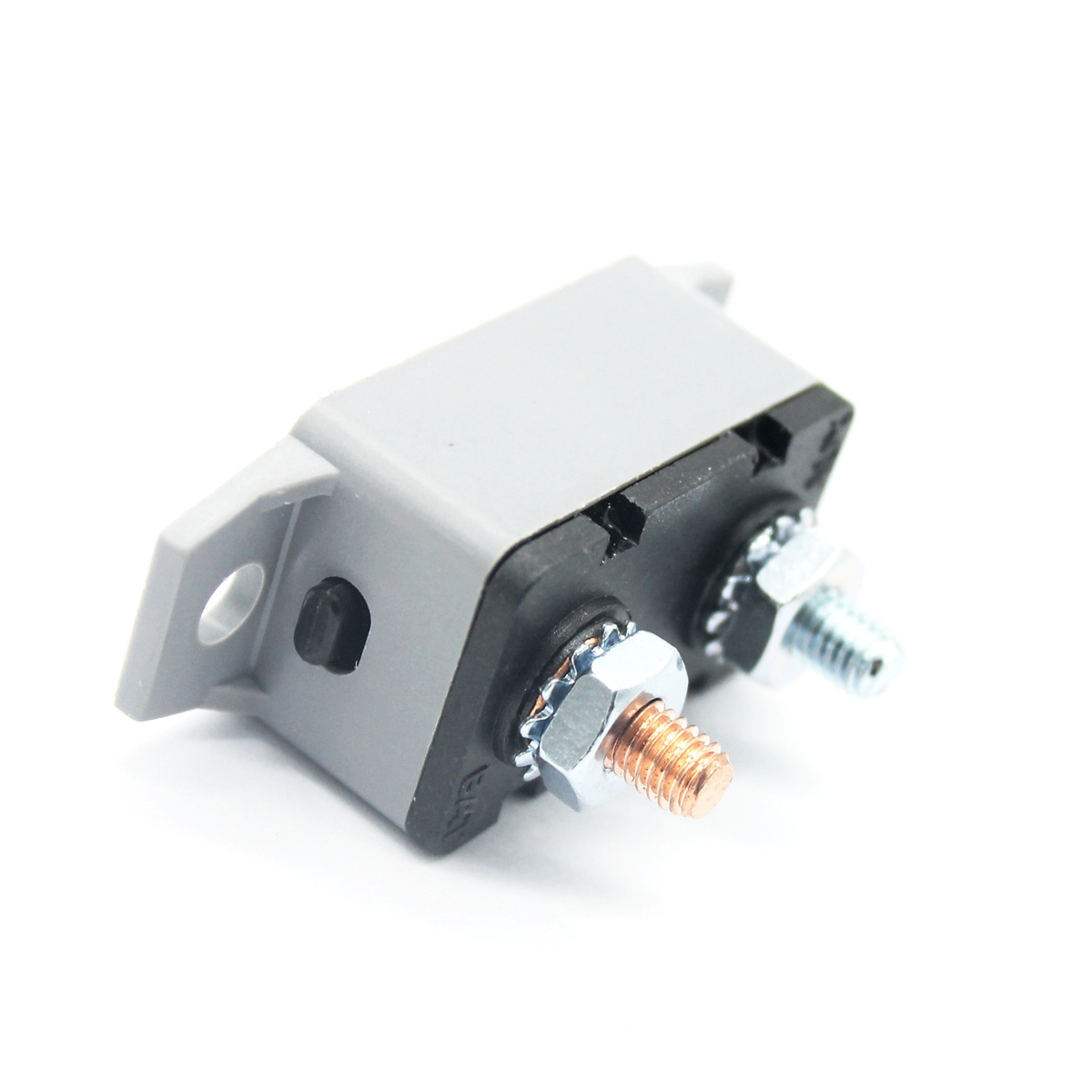

Product Presentation
Manual reset circuit breaker with fixed wings
Rated voltage: 6-28V
Rated current: 20A/30A/40A/50A (5-50A available)
Suitable for 6-28VDC applications
Manual reset button (in BAT. Side)
Plastic body and installation bracket
#10-32 bolt length .37in (9.4mm); bolt spacing .69in (17.5mm)
Wing -installed pore distance: 1.56in (39.6mm)
Interrupt rated value: 2.5ka @ 12VDC
Work temperature: -40 ° F-185 ° F (-40 ° C-85 ° C)
Torque level: 15in-lb
IP66 Waterproof: IP66 On Plastic Cover (Except for Terminal)
Application: battery charger, audio, cars, trucks, bus, ships, casual cars, trailers, etc.
